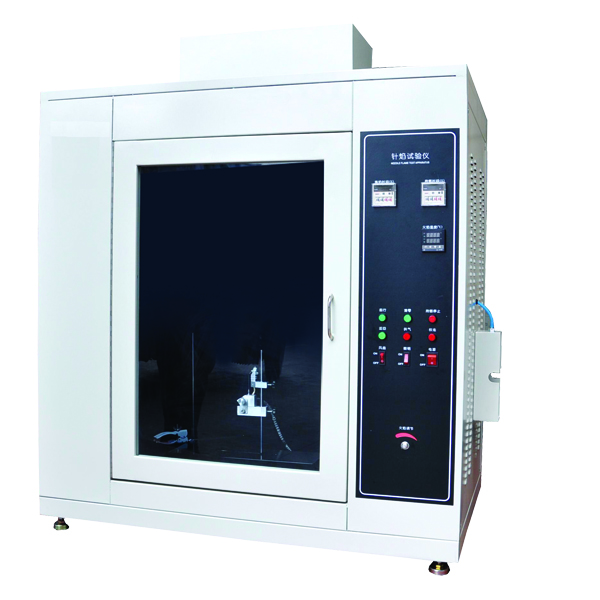

Needle Flame Tester Application
² Needle flame tester is the latest release of the flaming test equipment, with imports of touch-screen controller and
instrument.
² New test circuit, stable performance, reliable, simple and easy to operate. wide range of parameter adjustment.
Apply to the test standards IEC60695,GB5169, etc.
Needle Flame Tester Feature
² Glass windows
² Full import control components.
² Wireless remote control timing device.
² LCD Display or touch-screen control system
² Advanced temperature control ang measuremtnt system.
Needle Flame Tester Key Specification
|
Model NO. |
GT-C35G |
|
After glow time |
0-99h99m99.9s |
|
Continue burning time |
0-99h99m99.9s |
|
Flam height |
5-45mm ( Can be adjustment) |
|
Burn time |
0-99.99s ( Can be adjustment) |
|
Temp range |
0-1200degree ( Can be adjustment) |
|
Outside dimension |
1120x600x1020mm ( L x W x H) |
|
After flam time resolution |
0.1s |
|
After glow time resolution |
0.1s |
|
Flam Temp. Resolution |
1degree |
|
Standards |
IEC60695 . GB5169 |
